This guide provides step-by-step instructions for troubleshooting and repairing common electrical problems in Craftsman GT5000 and similar lawn tractors. We'll decode those confusing wiring diagrams, empowering you to fix your mower and save money on costly repairs. However, remember: safety is paramount. For additional diagram resources, check out this helpful wiring diagram resource.
Safety First: Prioritizing Your Well-being
Before commencing any repairs, always disconnect the negative terminal of your lawn tractor's battery. This crucial precaution prevents electrical shocks. Always wear safety glasses to protect your eyes from sparks and flying debris, and wear work gloves to protect your hands. Working with electrical components and machinery demands respect and caution. If you're unsure about any step, consult a qualified mechanic.
Essential Tools and Materials: Your Repair Kit
To successfully troubleshoot and fix your Craftsman lawn tractor's electrical system, gather the following tools and materials:
- Multimeter: (A device for measuring voltage, current, and resistance in electrical circuits. Essential for diagnosing electrical problems.) [Link to recommended multimeter]
- Screwdrivers: Phillips head and flathead screwdrivers of various sizes.
- Wire strippers/cutters: For neatly cutting and stripping wire insulation. [Link to recommended wire strippers]
- Pliers: Needle-nose pliers are helpful for working with small wires and connectors.
- Replacement parts: Have potential replacement parts on hand, such as spark plugs, switches, or fuses, depending on your diagnosis. [Link to Craftsman parts website]
- Wiring diagram: Obtain a wiring diagram specific to your Craftsman GT5000 model. (Often available online or in the owner's manual).
- Work gloves: Protect your hands from cuts and abrasions.
- Safety glasses: Protect your eyes from sparks and debris.
Troubleshooting Common Electrical Issues: Step-by-Step Solutions
This section outlines how to troubleshoot three common electrical problems found in Craftsman GT5000 lawn tractors. Remember to always consult your wiring diagram to identify the correct wiring paths and components.
1. No Spark at the Spark Plug: Diagnosing Ignition Problems
- Possible Causes: A faulty spark plug, a malfunctioning ignition coil, a broken wire in the ignition system, or a problem with the ignition switch.
- Diagnosis:
- Visual Inspection: Carefully examine the spark plug wire and ignition coil for any visible damage, such as cracks, fraying, or corrosion.
- Spark Plug Test: Remove the spark plug and use your multimeter to test its resistance. A faulty spark plug will show an abnormal reading. Replace as needed.
- Ignition Coil Test: Use your multimeter to check for voltage at the ignition coil. If there’s no voltage, the problem might lie in a faulty ignition switch or wiring. A failing ignition coil will show low or inconsistent readings.
- Wiring Inspection: Trace the wiring from the ignition coil to the spark plug and the ignition switch, looking for any breaks, loose connections, or corrosion.
- Repair: Replace any faulty components — spark plug, ignition coil, or damaged wiring — identified during diagnosis.
2. Blade Engagement Failure: Addressing PTO Issues
- Possible Causes: A faulty PTO (power take-off) switch, problems with the wiring to the PTO clutch, or a malfunctioning PTO clutch solenoid (the electromagnetic switch that engages the clutch).
- Diagnosis:
- Switch Test: Use your multimeter to check the continuity of the PTO switch. It should show continuity (a closed circuit) when the switch is engaged. If not, replace the switch.
- Wiring Inspection: Trace the wiring from the PTO switch to the PTO clutch and solenoid. Check for breaks, loose connections, or corrosion.
- Solenoid Test: Test the PTO clutch solenoid for continuity. It should have continuity when energized. If not, it may require replacement.
- Repair: Replace any faulty components – switch, wiring harness parts, or solenoid – identified during diagnosis.
3. Lights Not Working: Troubleshooting the Lighting System
- Possible Causes: A blown bulb, a malfunctioning light switch, faulty wiring in the lighting circuit, or a blown fuse.
- Diagnosis:
- Bulb Check: Check the bulbs visually for signs of damage. If a bulb is burnt out, replace it.
- Switch Test: Use your multimeter to test the light switch for continuity. If it's not working correctly, it needs replacement.
- Wiring Inspection: Trace the wiring from the light switch to the light fixture. Look for broken or corroded wires.
- Fuse Check: Check the circuit’s fuse; if it’s burnt out, replace it.
- Repair: Replace any identified faulty components, such as bulbs, switches, fuses, or repair damaged wiring.

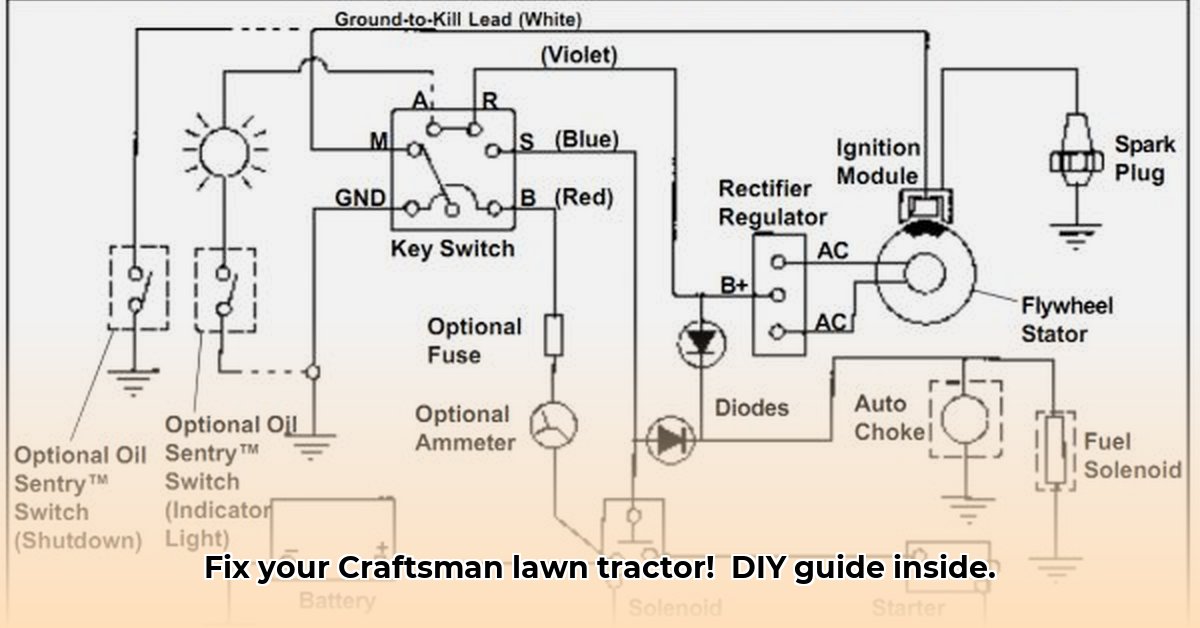

Deciphering Your Wiring Diagram: Your Electrical Roadmap
Your Craftsman GT5000's wiring diagram is crucial for successful troubleshooting. It’s a visual representation of your tractor's electrical system, showing the pathways of all wires and the location of components. Take your time studying the diagram and use it to help trace the circuits involved in each of the problems above.
Preventative Maintenance: A Proactive Approach
Regularly inspect your lawn tractor’s wiring harness for any signs of damage or wear. Clean any corroded battery connections and ensure they are tight. Addressing minor issues early will help prevent major electrical problems down the line. A little preventative maintenance can save you significant time and money.
Frequently Asked Questions (FAQ)
Q: Where can I find a wiring diagram for my Craftsman GT5000? A: Check your owner's manual, or search online using the model number of your tractor. Reputable parts websites may also provide wiring diagrams.
Q: Can I use aftermarket parts instead of Craftsman parts? A: While you can, using genuine Craftsman (OEM) parts ensures the best fit and often longer life.
Q: I'm still having trouble. What should I do? A: If you're overwhelmed or unsuccessful in troubleshooting the problem yourself, contact a qualified small engine repair technician. They have the expertise and tools to diagnose and repair the issue.
By following these steps and taking your time, you can successfully troubleshoot and repair many common electrical problems on your Craftsman GT5000 lawn tractor. Remember to always prioritize safety and to consult your wiring diagram regularly.
